PRECISION Induction Heater model PIH 2005 has highest capacity to heat the components. It has controls similar to PIH-series, which are intelligent microcontroller based electronic controls with data logger which can upload the all data month wise.
It weights about 3 Ton and capable to heat the Railway Wheel Tyre within 15 to 20 min.
- Manufacturing, exporting and supplying of a wide assortment of induction heaters, electrical induction heaters, industrial induction heaters and hydraulic equipment.
- CALL US
- +(91)-9325029465 / 9833228721
- TIMING
- Mon - Sat: 10am - 5pm

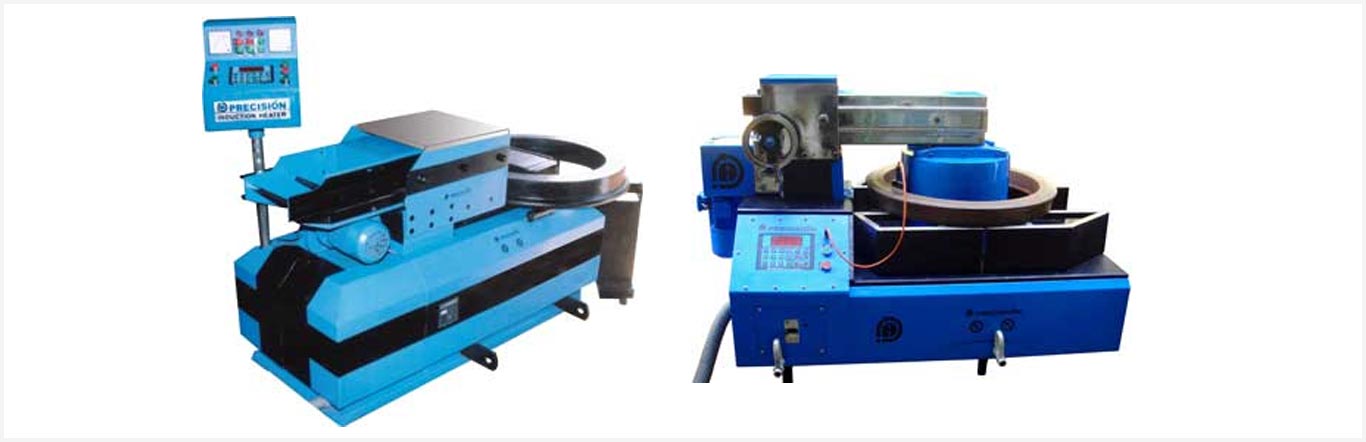

Tyre Induction Heater PIH: 2005 (60 / 127 KVA)
Tyre Induction Heater PIH 2005 (60 / 127 KVA)
Model PIH 2005 is provided with automated Roll-sliding Arrangement for horizontal yoke and operated automatically and manually in case of power failure. The automated Roll-Sliding Arrangement is so designed that the yoke gets lifted automatically rolls off from the vertical supports without rubbing or damaging and scraping mating surfaces. This arrangement provides additional safety, ease of operation and helps to improve productivity.
| Sr. | PRODUCT DATA | PIH - 2005 |
|---|---|---|
| 1) | Power | 60.0 / 127.0 KVA |
| 2) | Voltage | 3Ø x 440V |
| 3) | Current (Max) | 137 A / 290 A |
| 4) | Power Control | 25%, 50%, 75%, & 100% |
| 5) | Temperature Control (Range) | 0 - 400oC / 0 - 500oC |
| Maximum Temperature | 500oC | |
| Accuracy Temperature | ± 3oC | |
| 6) | Time - Control | 0 - 99 Minutes |
| 7) | Residual Magnetism | < 1A / cm |
| 8) | Overall dimensions (wxdxh) (mm) | 1780 x 790 x 1150 |
| 9) | Weight (Main Unit) | 3000 Kg. (Apx.) |
| 10) | Special Hand Gloves |  |
| Sr. | Optional Accessories | 1) | Digital Thermoneter (0-500 C) | |
|---|---|---|
| 2) | Roll - Sliding Model | |
| 3) | Automated Roll Sliding Arrangement |
|
| 4) | Hydraulic Equipment Trolley | |
| 5) | Riser Block (Pair) (mm) | |
| 6) | Remote Control |
|
