PRECISION Induction Heater - Series PIH - is designed to heat the Bearings and other shrink-fit components prior to mounting using latest technology intelligent microcontroller based electronic controls.
The life of Bearings and other torque transmitting steel components, which are shrunk-fit on shaft, may get cut short due to rough handling and faulty installation or mounting methods. This can be avoided by expanding them by induction heating for the purpose of mounting of the component.
- Manufacturing, exporting and supplying of a wide assortment of induction heaters, electrical induction heaters, industrial induction heaters and hydraulic equipment.
- CALL US
- +(91)-9325029465 / 9833228721
- TIMING
- Mon - Sat: 10am - 5pm

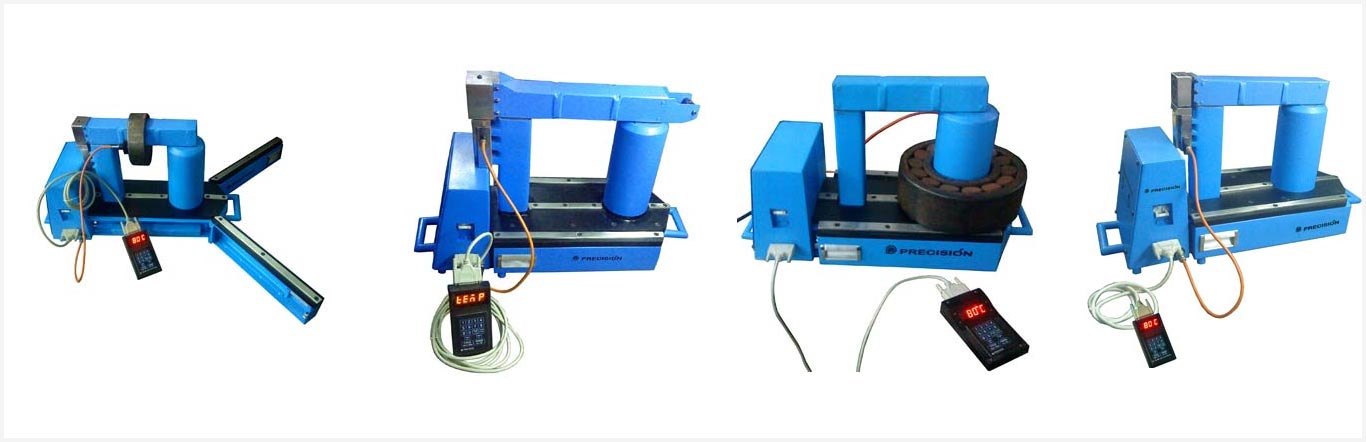

Induction Heater PIH: 2002 Special (4.6 / 6.0 KVA)
Induction Heater PIH 2002 Special (4.6 / 6.0 KVA)
PRECISION Induction Heaters - Series PIH - are available in 5 different models for mounting, range of bearings having bore size from 14 mm and above. Fast, safe and economical heating of bearings is best features of PIH Induction heaters.
PIH series is light weight and portable for better performance. It has power capacity of 3.5 / 4.0 KVA. The controls are intelligent microcontroller based programmable electronic controls. It has two operating modes, Temperature mode and Time mode. Both are controlled through feather touch key Board. Both modes can be seen at the time of operation. It can also be used to heat bearings of larger diameter using a pair of Raiser Blocks size 55 x 55 x 125 mm. The unit can also be used to heat a plate of any magnetic material by placing the plate in place of the horizontal yoke across the vertical supports.
| Sr. | PRODUCT DATA | PIH - 2002 |
|---|---|---|
| 1) | Diameter (mm) Bearing | 20 to 550 |
| 2) | Bearing Weight | 125 Kg |
| 3) | Power | 4.6 / 6.0 KVA |
| 4) | Voltage | 230V / 440V |
| 5) | Power Control | 25%, 50%, 75%, & 100% |
| 6) | Temperature Control (Range) | 0 - 250oC |
| Maximum Temperature | 400oC | |
| Accuracy Temperature | ± 3oC | |
| 7) | Time - Control | 0 - 99 Minutes |
| 8) | Residual Magnetism | <2A / cm |
| 9) | Overall dimensions (wxdxh) (mm) | 690 x 265 x 390 |
| 10) | Space between supports (wxh) (mm) | 200 x 245 |
| 11) | Weight (Main Unit) | 54 Kg. |
| 12) | Weight with Standard Yokes | 68 Kg. |
| 13) | Horizontal Yoke Size (mm) | 60 X 60 X 350 |
| 28 x 28 x 350 | ||
| 14 x 14 x 350 | ||
| 14) | Can Heat Sealed & Pre-greased Bearings |  |
| 15) | Thermal Over Protection | |
| Sr. | Optional Accessories | |
|---|---|---|
| 1) | Horizontal Yoke Sizes (mm) | 20 x 20 x 350 |
| 30 x 30 x 350 | ||
| 40 x 40 x 350 | ||
| 50 x 50 x 350 | ||
| 2) | Digital Thermometer (0-500oC) | |
| 3) | Roll - Sliding Model | |
| 4) | Swing Arm Model | |
| 5) | Riser Block (Pair) (mm) | |
| 6) | Magnetic Temperature Probe | |
| 8) | Equipment Trolley | ------------- |
